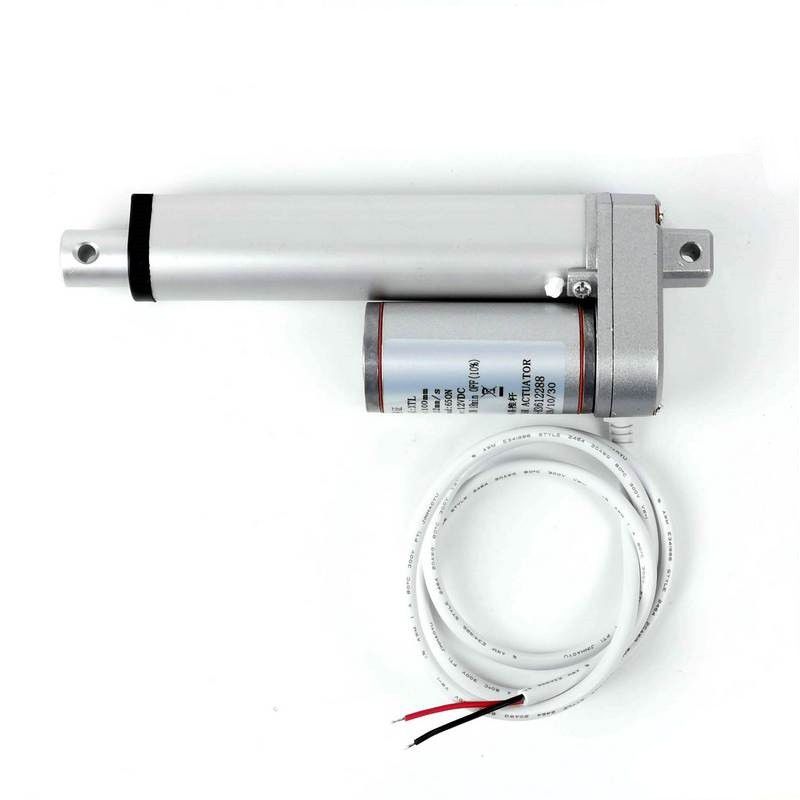

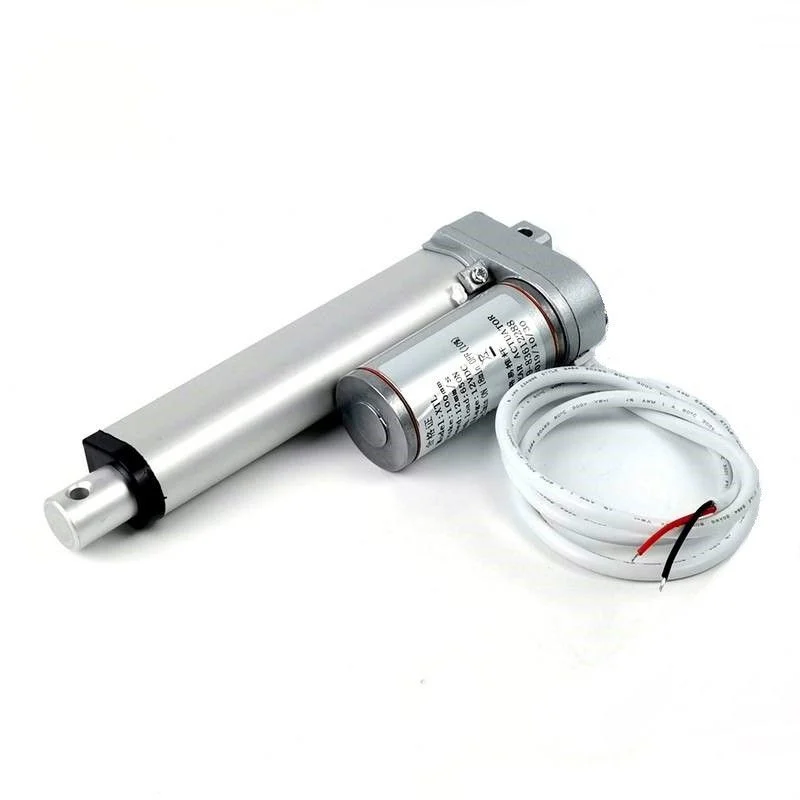

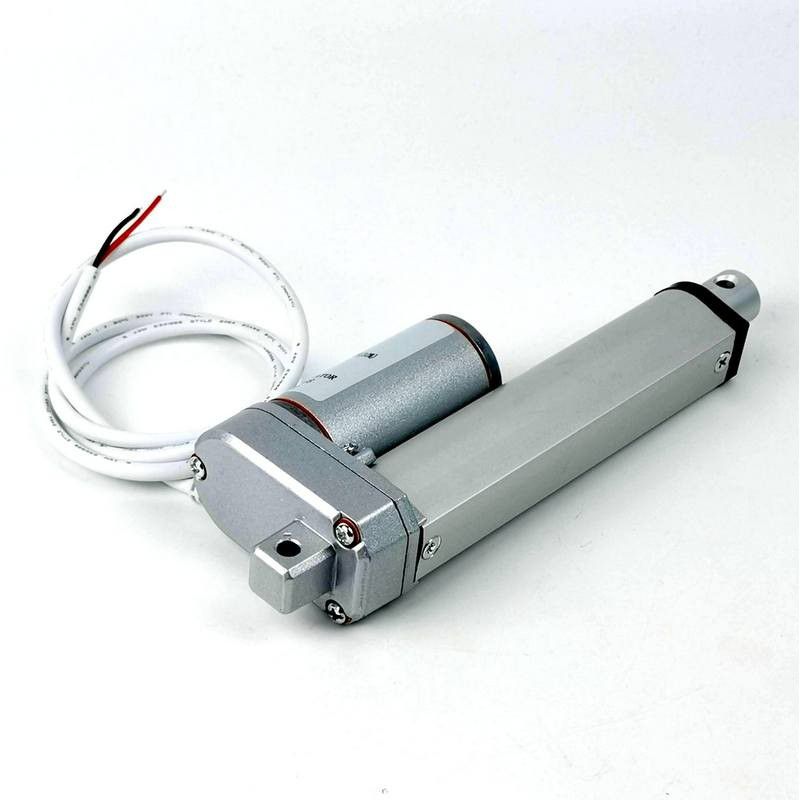

12V Linear Actuator 100mm Stroke
20.00 د.ك
Linear Motor offers linear actuation instead of rotational motion in normal electric motor. This Linear motor is generally less cumbersome than a cogged belt, simpler than a rack and pinion and more economical than a ball screw.
In stock
Description
Linear Motor offers linear actuation instead of rotational motion in normal electric motor. This Linear motor is generally less cumbersome than a cogged belt, simpler than a rack and pinion and more economical than a ball screw. It can be used in laboratory applications, industrial automation, and robotics. Examples:
- Electric Adjustable Bed for patient
- Electric Wheel Chair
- Electric Adjustable Table
- Electric Lift
- Electric Massage Chair
- Solar Panel Tracker
This linear motor is compact, self-locking, feature an ACME screw drive, an Aluminium alloy gear housing, aluminum extension and protection tubes, powder metal gears, and are ideally suited for off-highway equipment applications.
- Voltage: 12VDC
- Power: 25W
- Current: 3A (Max)
- Speed: 12mm/s
- Auto-stopper at maximum and minimum length
- Maximum Thrust = 650N
- Extendable length = 100mm
- Motor dimension without extendable length (w x l x h) = 40mm x 75mm x 205mm
- Cable length: ~ 80cm, 2 leads
- Duty cycle = 2min ON/18min OFF
- Operating temperature: -20ºC to +75ºC
- Noise level: 65dB
- Material: Aluminum Alloy
- Protection standard: IP54
- Metal gears for robust and durable usage
- Stop at any length and auto-lock
- Electrical protection: Over-Current protection, short-circuit protection
