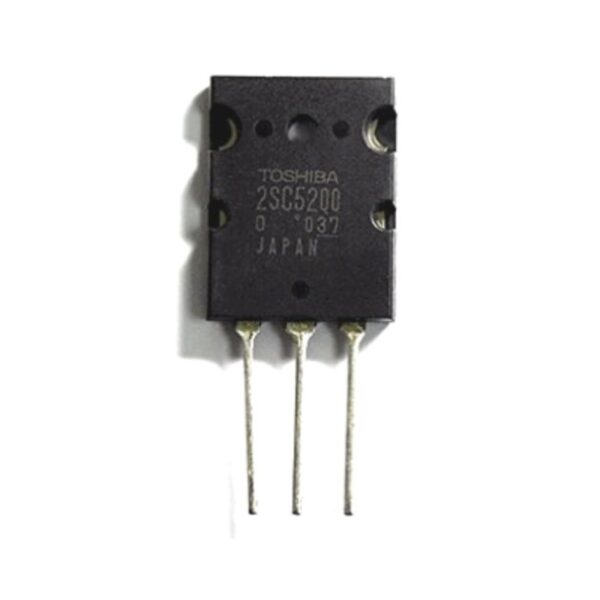

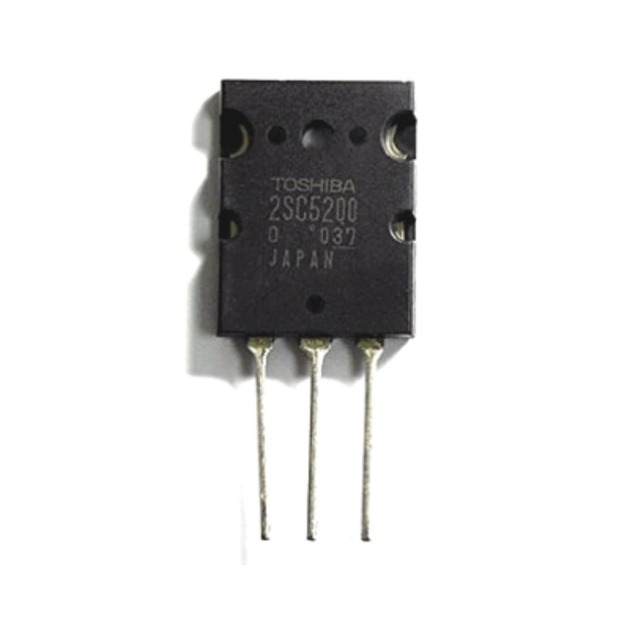

2SC5200 NPN transistor
2.50 د.ك
Power Amplifier, High breakdown voltage:
In stock
Description
Absolute Maximum Ratings
| Characteristics | Symbol | Rating | Unit |
|---|---|---|---|
| Collector Current | IC | 15 | A |
| Collector power dissipation | PC | 150 | W |
| Collector-emitter voltage | VCEO | 230 | V |
Electrical Characteristics
| Characteristics | Symbol | Condition | Value | Unit |
|---|---|---|---|---|
| Transition frequency (Typ.) | fT | IC=1A VCE=5V |
30 | MHz |
| DC Current Gain hFE (Max) | hFE | IC=1A VCE=5V |
160 | – |
| DC Current Gain hFE (Min) | hFE | IC=1A VCE=5V |
55 | – |
| Collector Emitter Saturation Voltage (Max) | VCE(sat) | IB=800mA IC=8A |
3.0 | V |
