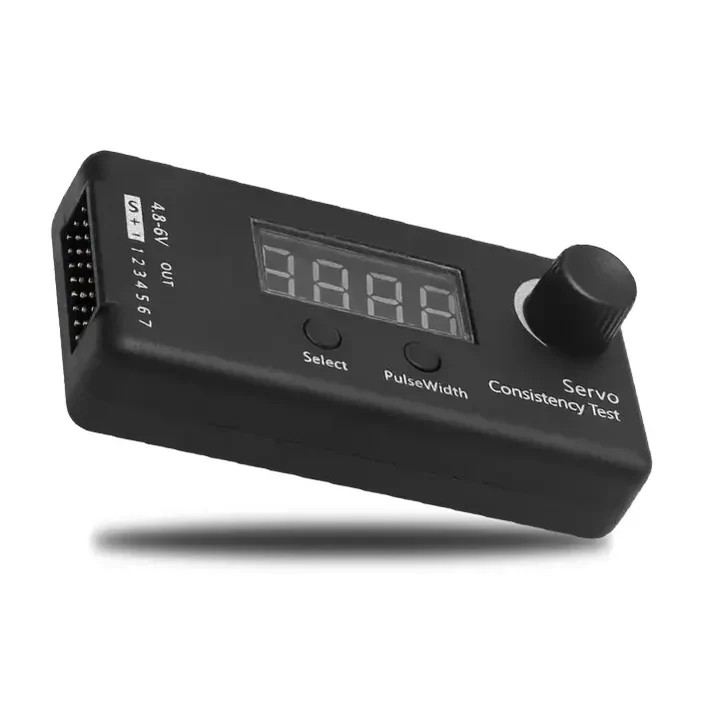

Digital servo tester

Description

Ensure your RC models are performing at their best with the Digital Servo & ESC Consistency Tester. This versatile tool is designed to accurately test and calibrate servos and electronic speed controllers (ESCs), making it an essential addition to any RC enthusiast’s toolkit.

Specifications:

• Input Voltage: DC 5~6V
• Output Signal Width: 800~2200us

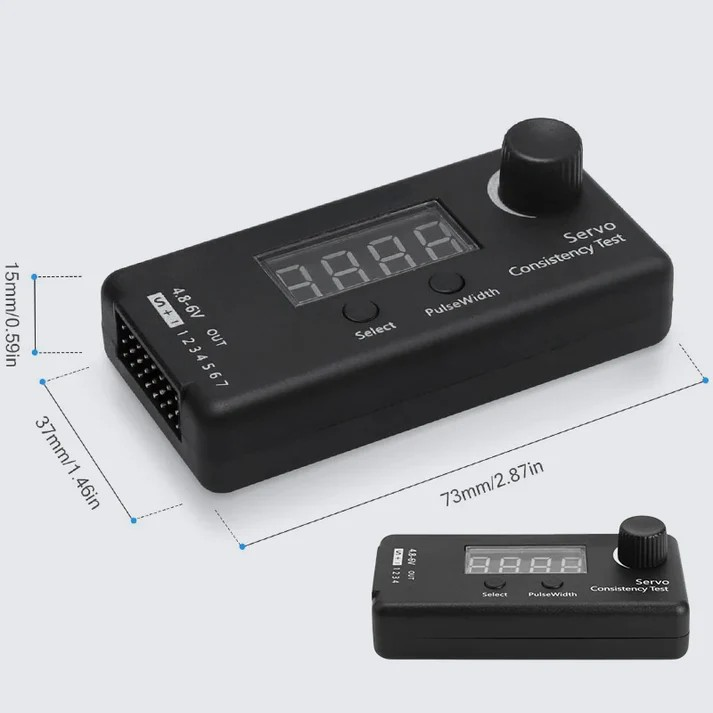

• Dimensions: 7.5 cm x 3.8 cm x 2.5 cm

Key Features:

• Simultaneous Control: Capable of synchronizing output control for up to 4 servos, allowing you to compare performance and ensure accurate response.
• Precise Measurements: The output signal can be accurate to within 2us (microseconds), enabling detailed testing of the steering servo’s responsiveness to subtle changes.
• PPM Signal Testing: Features a PPM signal test function with display, providing real-time feedback on PPM signal changes and synchronized output to the servo.

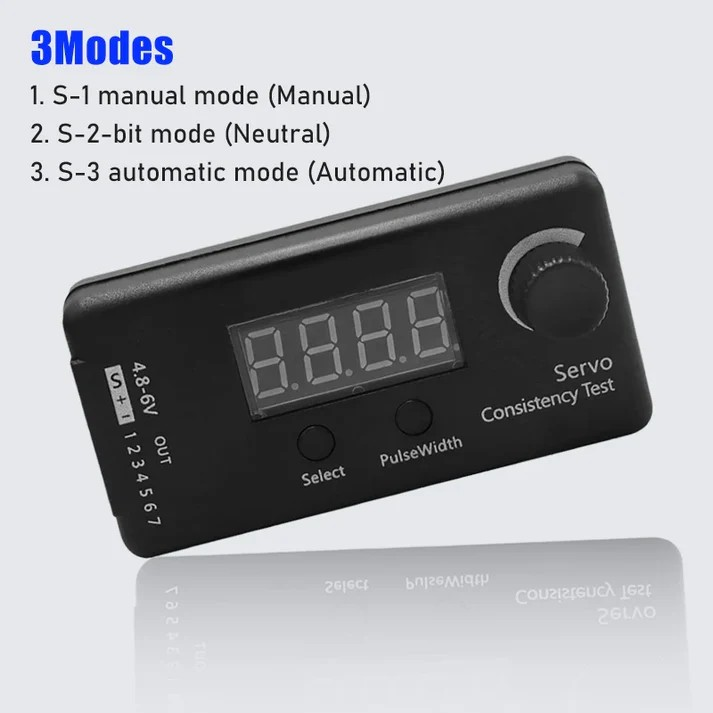

• Multiple Operating Modes:
  1. S-1 Manual Mode: Allows for manual adjustments.
  2. S-2 Neutral Mode: Centers the servo.
  3. S-3 Automatic Mode: Cycles through the servo’s full range of motion.
• Signal Cycles and Frequencies:
  • Analog Servo Signal Cycle: 50Hz with a 20us pulse width adjustment.
  • Digital Servo Signal Cycles:
    • 125Hz with an 8us pulse width adjustment.
    • 250Hz with a 4us pulse width adjustment.

Usage Notice:

• Select the appropriate digital or analog signal setting before connecting your servos to avoid potential damage.

Package Includes:

• 1 x Digital Servo & ESC Consistency Tester
