USB to RS-485 Converter
2.50 د.ك
This is a high-quality USB to RS485 Converter. It converts RS485 signals to USB. Can be used for long-range communication between devices over RS485 interface. It can also be used to read and write MODBUS data. Useful for reading equipment with MODBUS output, and also to write to registers and coils. Can also be used for testing and debugging over MODBUS.
In stock
Description

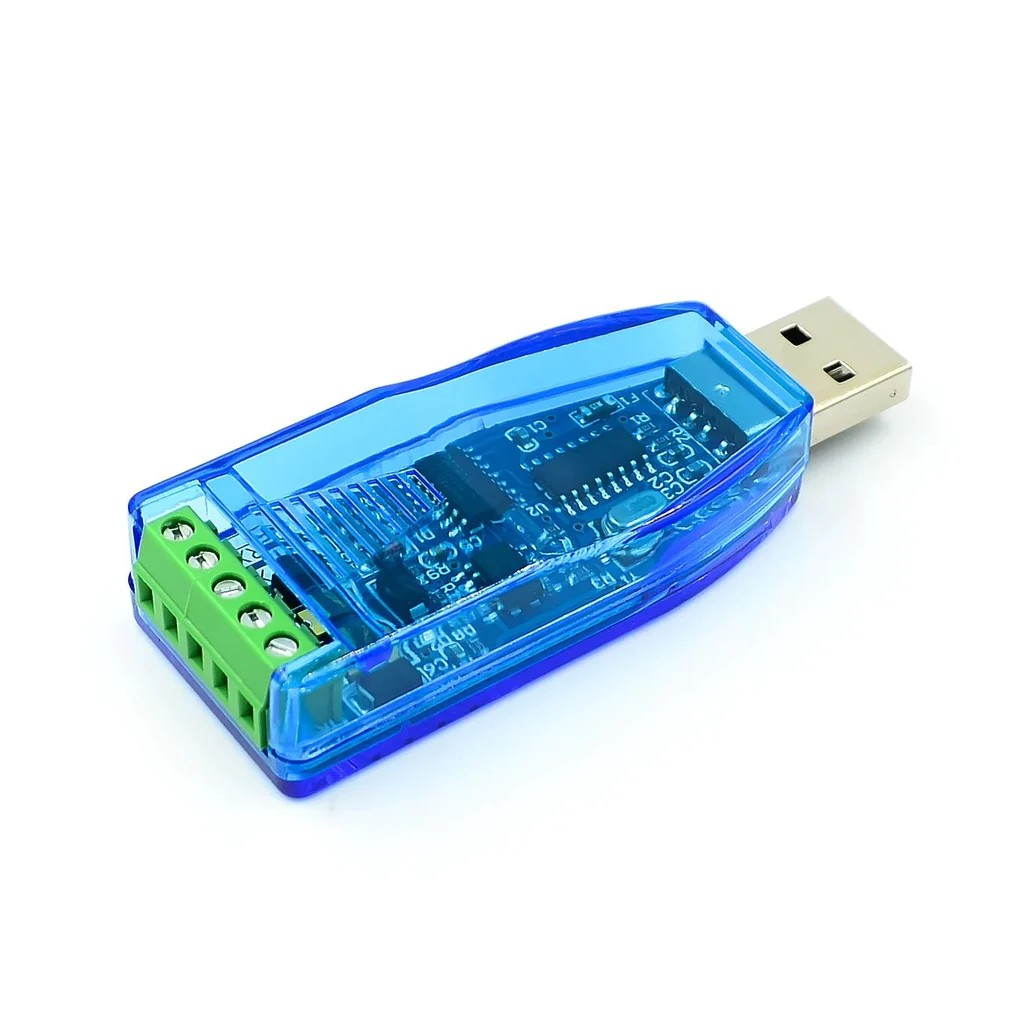

Industrial grade RS485 to USB converter which can withstand tough working environment. The housing is made of hardened ABS plastic with a reinforced terminal header for easy connection of communication wires.
This RS485 to USB converter is electrically protected against static electricity, high voltage spikes and other dangerous voltage spikes which can damage your equipment or data signaling. This protection is accomplished by four Transient Voltage Suppressors, one for each data line. Automatic send data control is enabled by default, so no external flow or handshake control is needed.
Specifications
- Directional control: Automatically determine and control the data transmission direction.
- Baud rate：300-921,600bps, automatically adapt serial port signal speed.
- Transmission distance: 1.2KM (at 9,600bps)
- Interface protection: 600W lightning strike, surge protection and ±15KV ESD protection
- Operating system: Windows, Mac OS, Linux
- Environment: -40℃-85℃, relative humidity 5%-95%

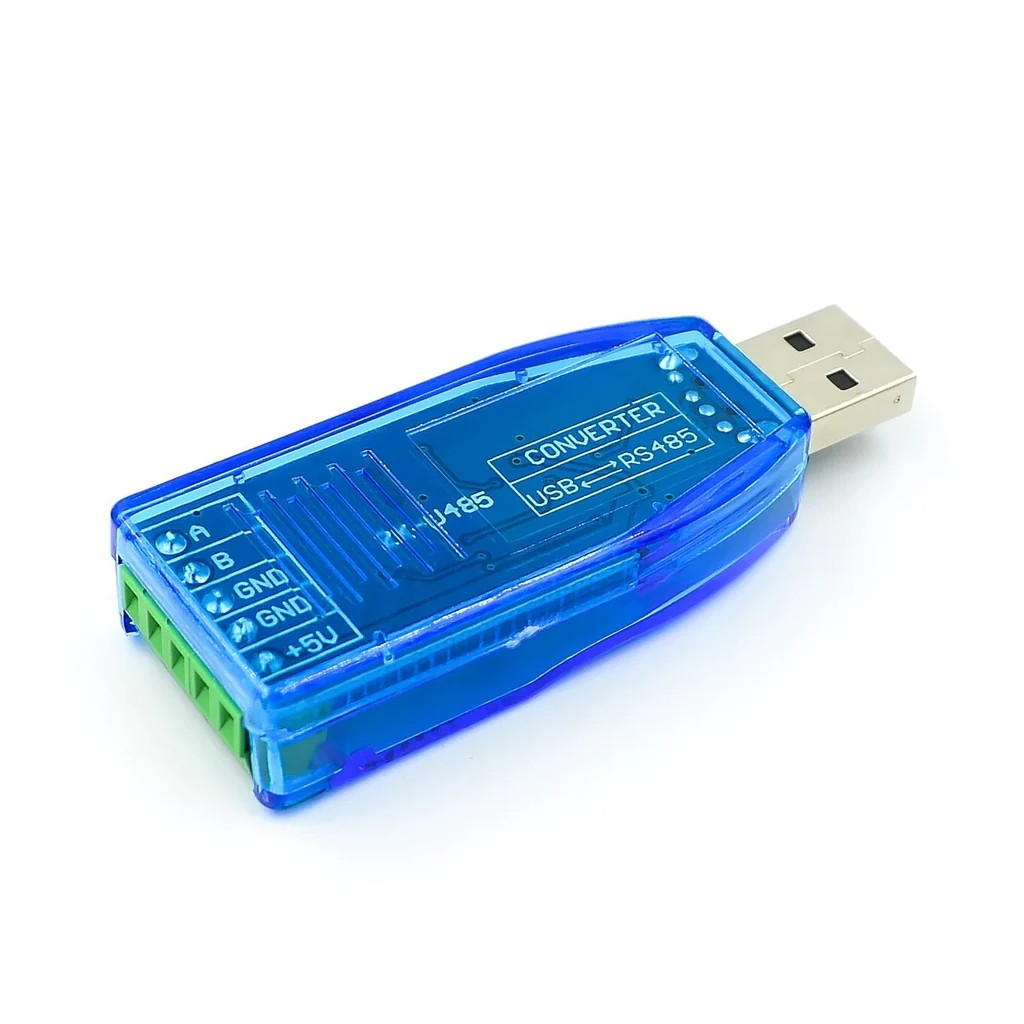

Pin Description:
pin 1: A–485 Signal Terminal A
pin 2: B–485 Signal Terminal B
pin 3: GND–485 signal ground (optional)
pin 4: GND- external power supply ground (can be used to supply power to other equipment or it can be empty)
pin 5: VCC – external power supply 5V+(can be used to supply power to other equipment or it can be empty)
