LCD Characters Display 16×02 green and Blue color and IIC / I2C / Interface adapter

0.75 د.ك1.95 د.ك

D44780 compatible LCD Characters Display 16×02 green color, 5V operating voltage. Dimension of the module is 80 x 36 x 13.5 mm. Take note, the picture is for reference only, LCD pcb design may have slightly difference, but the display functionality and pinout are same

Save more when buy it with the kit
Original price was: 22.25 د.ك.Current price is: 20.00 د.ك.
SKU: N/A Category: Tags:

Description

D44780 compatible LCD Characters Display 16×02 green and Blue color, 5V operating voltage. Dimension of the module is 80 x 36 x 13.5 mm. Take note, the picture is for reference only, LCD pcb design may have slightly difference, but the display functionality and pinout are same!

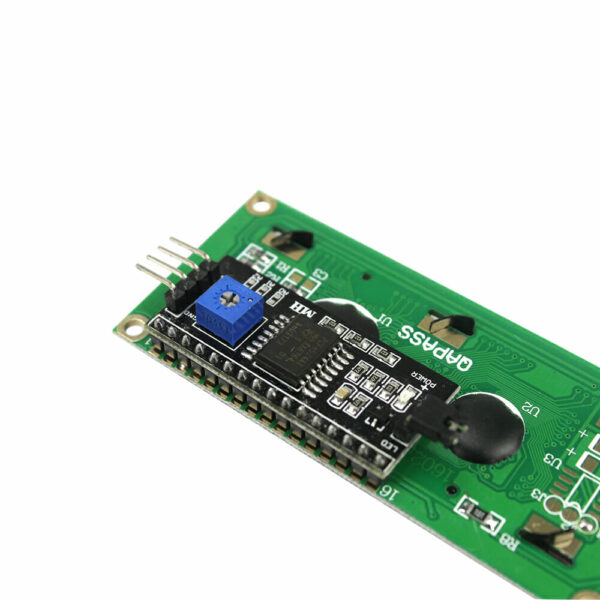

Almost every electronics enthusiast has run into pin issues with 1602 or the like LCDs. This module has a PCF8574T onboard which reduces the number of data pins needed to control the LCD down to 2! This excludes the power/ground pins which are also required.

There is an onboard potentiometer to control the LCD backlight and a jumper to disable it completely.

Applications:

  • Different MCU/Arduino Projects
  • Measurement Instruments

Additional information

kind

I2C_Only, LCD_+_I2C_Chip, LCD_Only
