Line Following Mobile Robot Bundle

Description

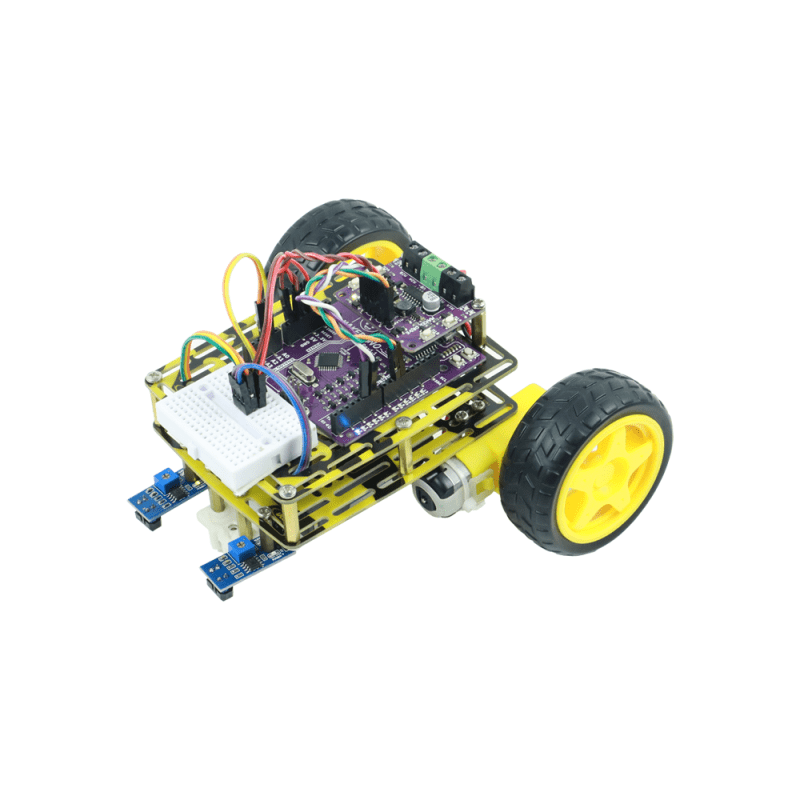

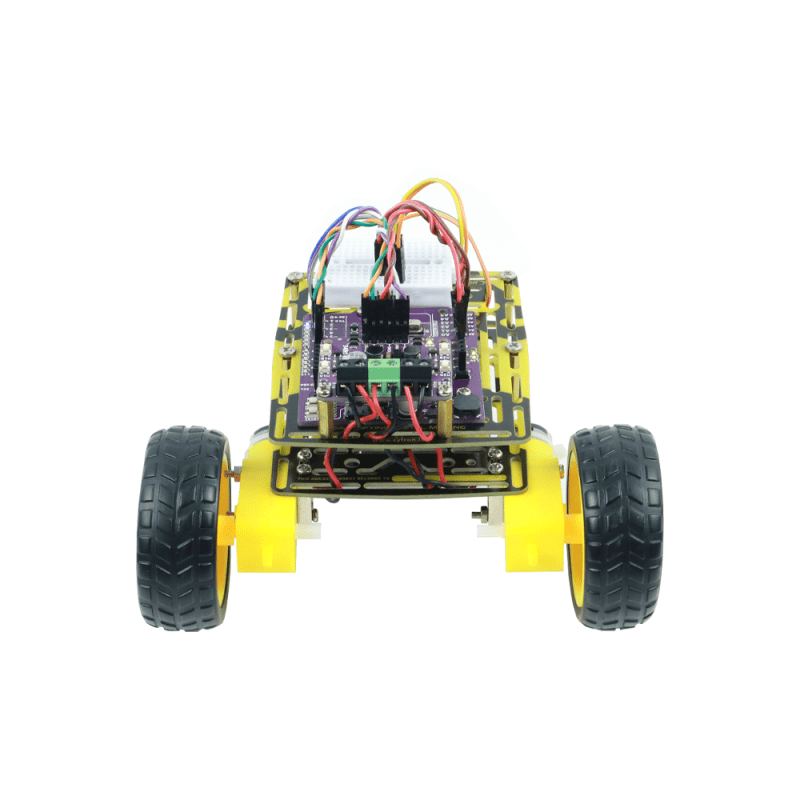

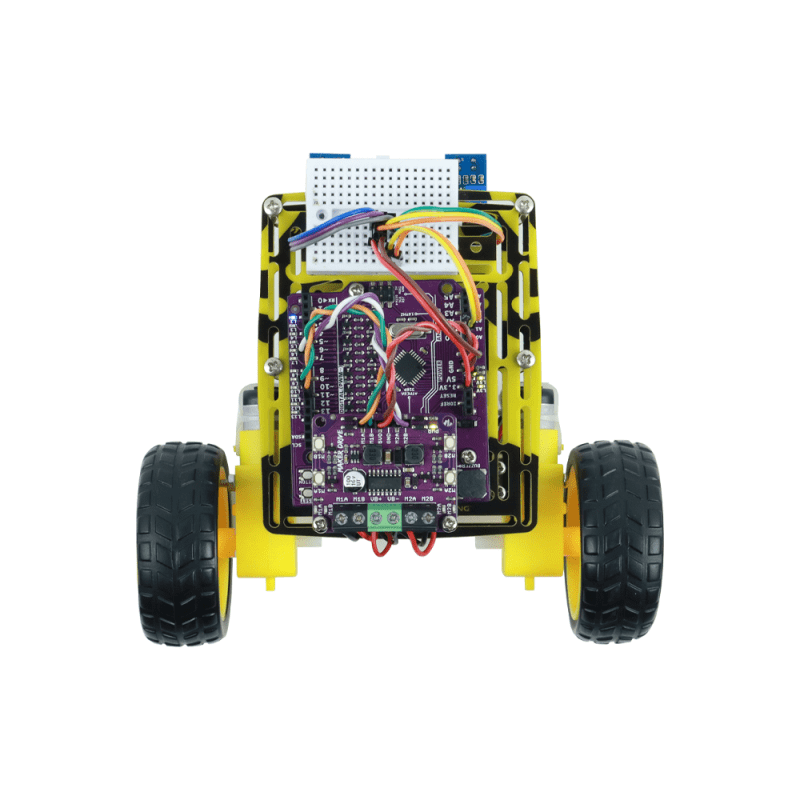

Everyone loves mobile robots 🙂 This is a mobile robot kit based on Maker UNO(Arduino UNO compatible). You can learn electronics, sensors, microcontrollers, and coding all at once, not to forget to have fun too!

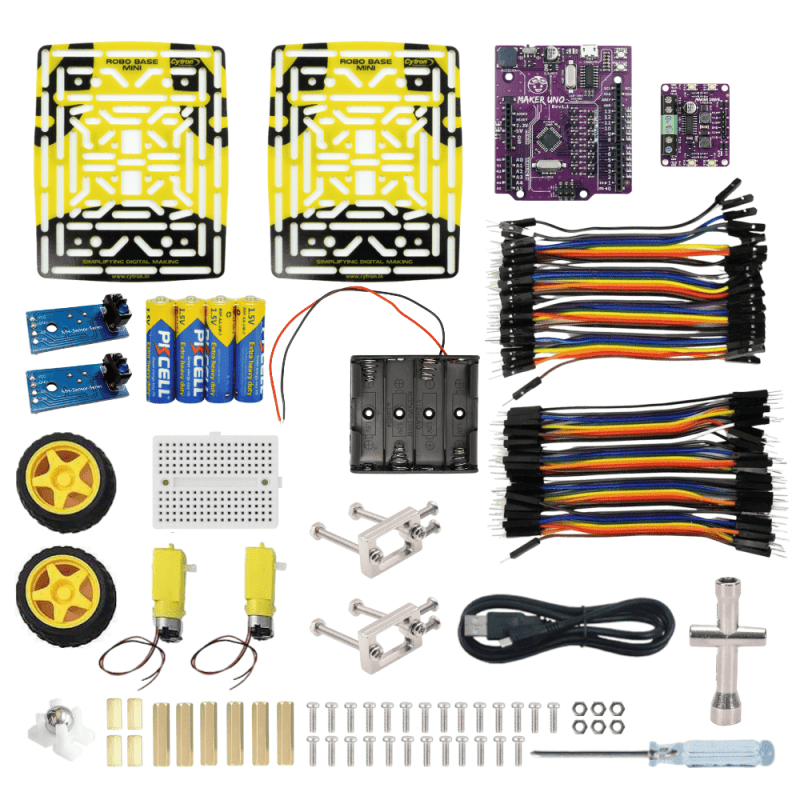

The kit comes in loose parts, so you will need to assemble it, but there is no soldering needed 🙂 What’s so special about this mobile robot kit is it has an infrared sensor (two) where you can program it for line detection and perform line following. And we have prepared the steps for you to assemble it and a sample sketch based on Arduino for your robot to follow the line.

With the beginner-friendly Maker UNO as the controller, everyone can build and program this mobile robot. We have also included

• Dual-channel motor driver – Maker Drive
• Custom designed PCB base
• Two “TT” brush motor
• 4 x AA battery to power the controller and motor
• Of course, it comes with the IR Line Tracking Module 🙂

• Controller: Maker UNO
• Motor Driver: Maker Drive dual-channel DC brush motor driver
• Sturdy robot chassis using Robo Base Mini

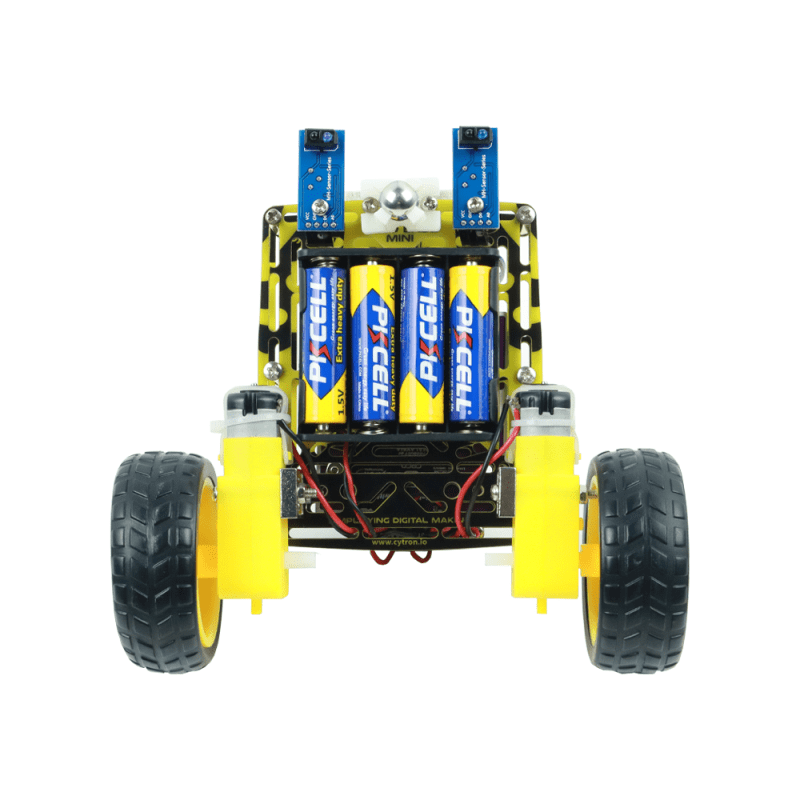

• Power both controller and motor with 4 x AA battery, with battery holder too
• Comes with IR Line Tracking Module, for line following
• Open-source example code, free to modify and learn to code
• Two “TT” motors with wheel, for differential drive
• Robust caster

Specifications:

• Chassis size: 109mm x 88mm
• Wheel Diameter: 67mm
• Castor Height: 34mm
• Motor parameters:
  • Gear Ratio = 48:1
  • Speed with 66mm diameter wheel = 0.65 m/s at 7.2VDC
  • Recommended operating voltage: 5 – 10VDC
  • Noise level < 65dB
  • Current Consumption: 120 mA each motor (running at 6V)
