Description

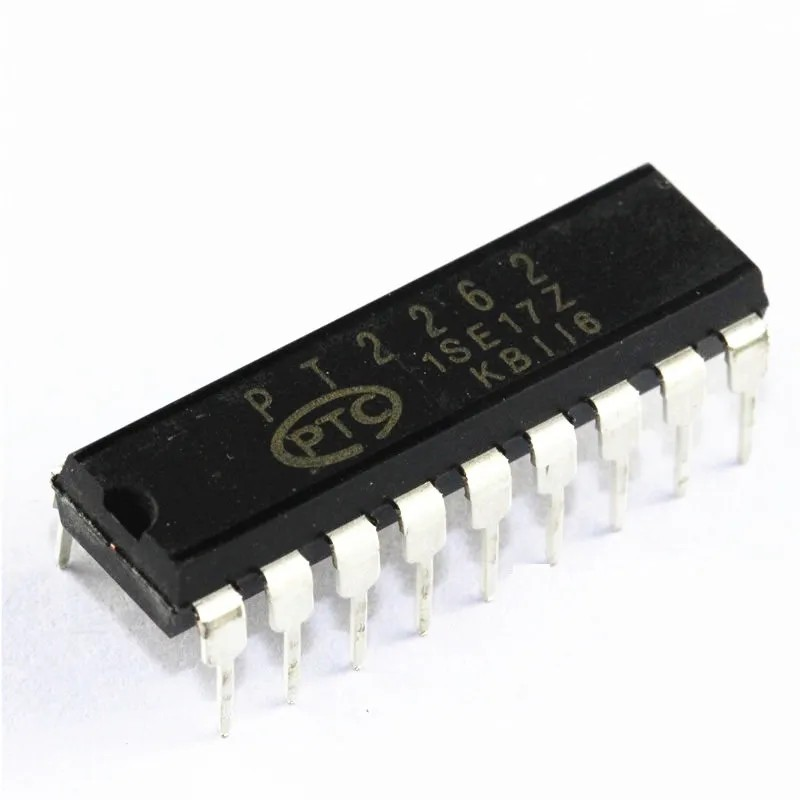

The PT2262 is a widely used remote control encoder integrated circuit designed for wireless communication systems. It is commonly paired with the PT2272 decoder IC to create reliable RF remote control applications.

This encoder converts parallel input data into a serial code signal that can be transmitted through an RF transmitter module. The PT2262 supports multiple address and data combinations, allowing secure and customizable wireless communication.

Due to its stable performance, low power consumption, and simple circuit design, the PT2262 is widely used in remote control systems, home automation devices, security systems, wireless switches, and industrial control applications.

Key Features

• Reliable RF remote control encoder IC

• Works with PT2272 decoder IC

• Supports multiple address and data code combinations

• Low power consumption

• High noise immunity

• Easy integration with RF transmitter modules

• Stable and reliable wireless transmission

Applications

• Wireless remote control systems

• Home automation projects

• Security alarm systems

• Remote switches and sockets

• Industrial wireless control

• Arduino and microcontroller RF projects

Specifications

• Model: PT2262

• Type: Remote Control Encoder IC

• Address Bits: Up to 12 bits

• Data Bits: Up to 6 bits

• Operating Voltage: 4V – 15V

• Output Type: Serial Encoded Signal

• Package: DIP / SOP (depending on version)

• Compatible Decoder: PT2272
