Description

The Universal IR Infrared Receiver TL1838 / VS1838B is a high-sensitivity infrared receiver module designed to receive 38KHz modulated IR signals used in most remote control systems. It is commonly used in TV remote controls, Arduino projects, Raspberry Pi projects, home automation systems, and consumer electronics.

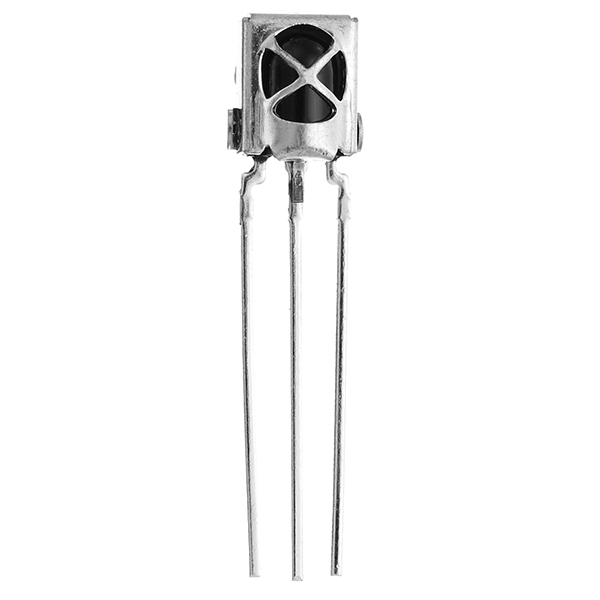

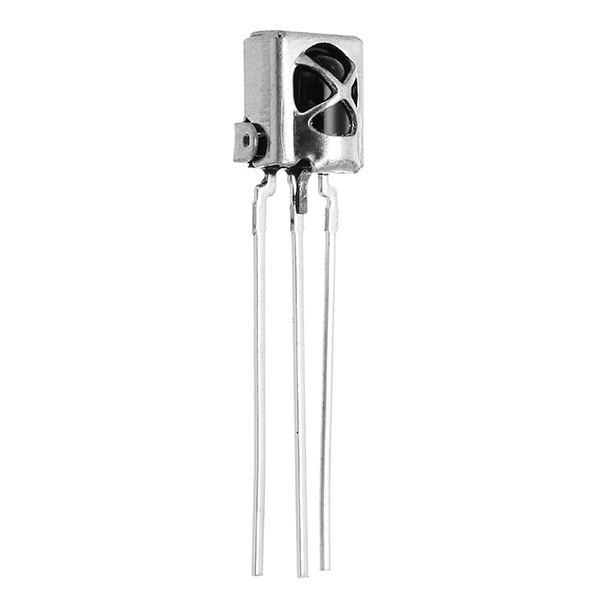

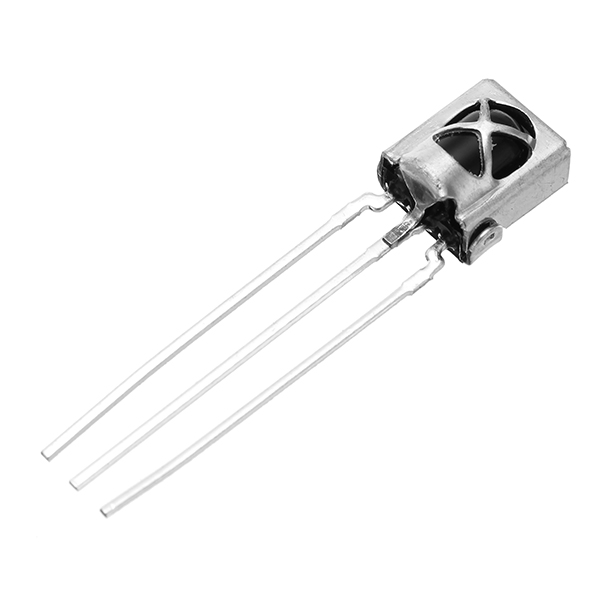

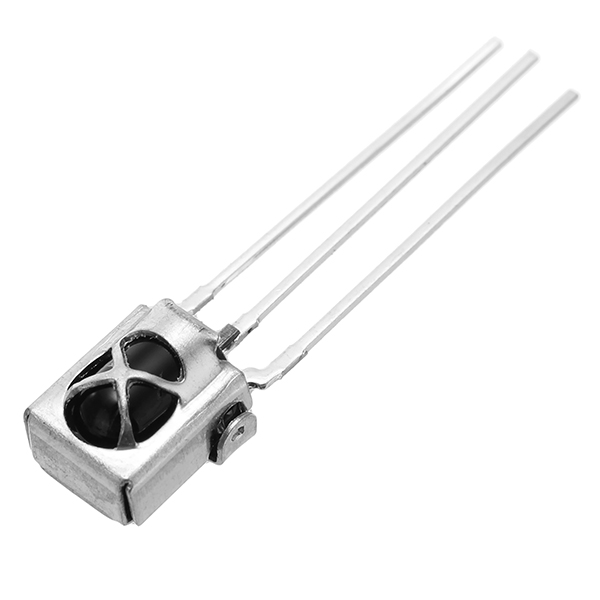

This module features a built-in metal (iron) shielding shell that improves noise immunity and ensures stable signal reception even in environments with electrical interference.

The receiver integrates a photodiode, amplifier, and demodulator circuit, making it easy to interface directly with microcontrollers and digital circuits.

Its compact design, reliable performance, and low power consumption make it ideal for electronics hobbyists, engineers, and product developers.

Key Features

• Supports 38KHz infrared signal frequency

• High sensitivity IR receiver

• Built-in metal shield for noise protection

• Compatible with Arduino, Raspberry Pi, and microcontrollers

• Low power consumption

• Easy to interface with digital circuits

• Stable performance in noisy environments

Applications

• TV and media remote control systems

• Arduino IR remote projects

• Raspberry Pi remote control systems

• Home automation systems

• Consumer electronics

• IR signal detection circuits

Specifications

• Model: TL1838 / VS1838B

• Type: Infrared Receiver Module

• Carrier Frequency: 38KHz

• Operating Voltage: 2.7V – 5.5V

• Output Type: Digital Signal

• Package: 3-pin module with metal shield

• Pins: VCC / GND / OUT

• Detection Distance: Up to 18 meters (depending on transmitter)
