NTC Thermistor Temperature Sensor Module 4 Pin
1.25 د.ك

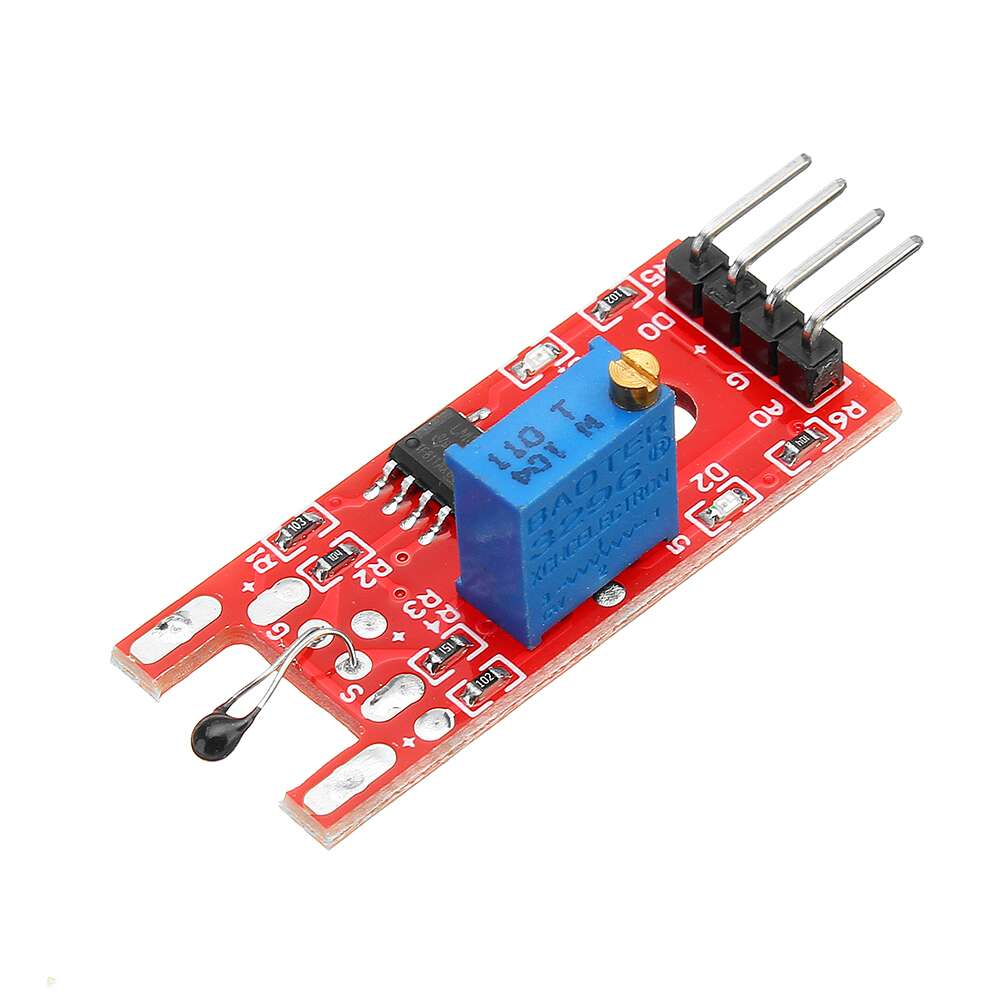

Module with temperature sensor equipped with a thermistor NTC-MF52. For control, used is an analog or digital output. It detects the temperature in the range from -55°C to 125°C. It is powered with a voltage of 5 V.
In stock
Description
Module with temperature sensor equipped with a thermistor NTC-MF52. For control, used is an analog or digital output. It detects the temperature in the range from -55°C to 125°C. It is powered with a voltage of 5 V.
The sensor works with any microcontroller with digital or analog inputs, including Arduino. To read data, simply connect the power supply and output pin to any input of the microcontroller, and read its status.
| PIN | DESCRIPTION |
|---|---|
| VCC | The supply voltage is 5V. |
| GND | The ground of the system. |
| A0 | Analog signal. |
| D0 | Digital signal. |
Specification of the temperature sensor NTC-MF52
- Supply voltage: 5 V
- Type: analog/digital
- Thermistor: NTC MF52 3950
- Measurement range: from -55 °C to 125 °C
- Accuracy: +/- 0.5 °C
- PCB Dimensions: 35 x 15 mm
