Description

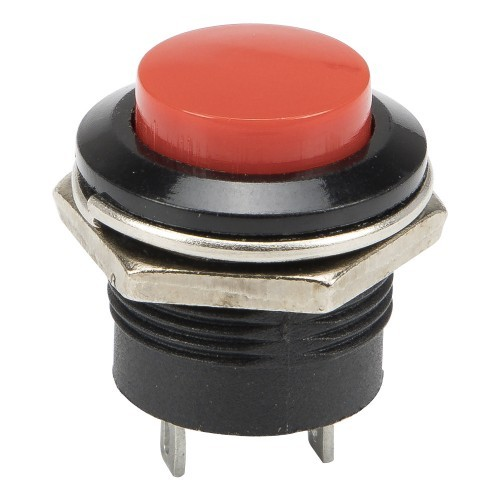

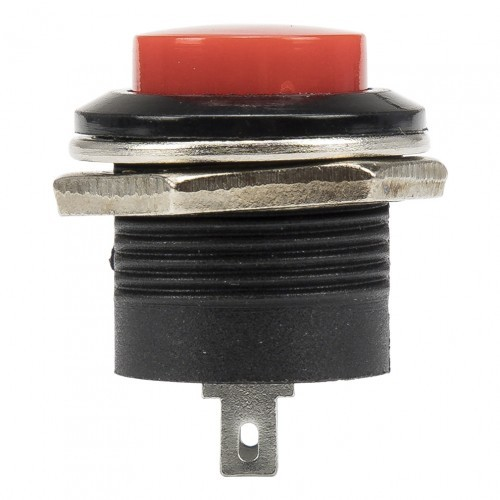

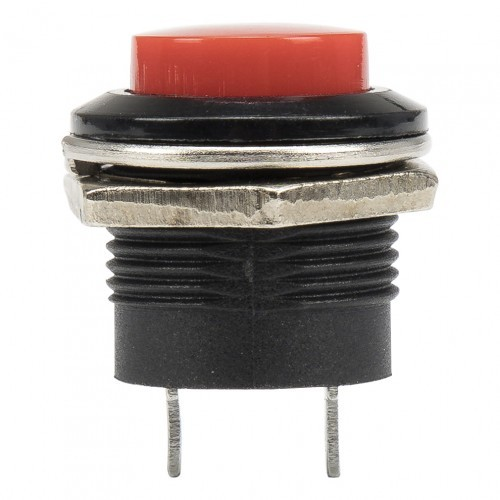

The R13-507-R is a durable 16mm panel-mount momentary push button switch designed for reliable control in electrical and electronic systems. This switch features a round red button and a self-reset (ON)-OFF action, meaning the circuit is active only while the button is pressed and automatically returns to the OFF position when released.

It is widely used in control panels, industrial equipment, DIY electronics projects, and automation systems. The compact design allows easy installation into a 16mm mounting hole, making it suitable for a wide range of devices and enclosures.

Built with high-quality contacts and strong insulation performance, the R13-507-R provides stable operation, long mechanical life, and excellent electrical reliability.

Key Features

• Momentary (ON)-OFF push button operation

• 16mm panel mounting size

• Round red button design

• Reliable electrical performance

• Easy installation in control panels

• Compact and durable construction

• Suitable for industrial and DIY electronics

Applications

• Control panels and machinery

• Industrial equipment

• Electronic projects and prototypes

• Arduino and Raspberry Pi control buttons

• Reset switches and trigger inputs

• Home automation systems

Specifications

• Model: R13-507-R

• Switch Type: Momentary Push Button

• Contact Type: SPST (Normally Open)

• Mounting Hole Diameter: 16mm

• Rated Voltage / Current: 3A @ 250VAC

• Contact Resistance: ≤ 50mΩ

• Insulation Resistance: ≥ 100MΩ

• Dielectric Strength: 2000VAC for 1 minute

• Mechanical Life: 200,000 cycles

• Electrical Life: 50,000 cycles

• Operating Temperature: -25°C to 55°C

• IP Rating: IP40

• Button Color: Red
